Product Details

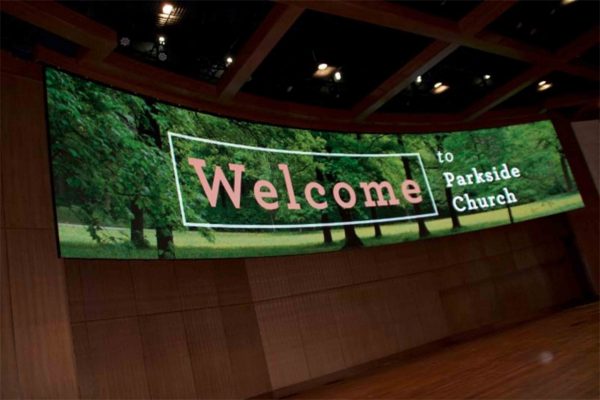

P3 Indoor LED Fixed Video Wall RGB with WiFi/LAN
P3 Indoor LED Fixed Video Wall RGB with WiFi/LAN
- Typical viewing distances are 3 meters
- Brightness, Display speed, Letter font and letter size are adjustable
- Video, Images, Animations, Gif, Seven Color Combination text, animation, Logo
- Supported Audio
- Programming Mobile app Operate through WiFi/LAN
- Full Color RGB SMD2525 3in1 Module
- Multiple Language Supported
- USB +wifi Support: Win8/Winxp/ Win7/ W10 Android phone
- Made for outdoor fully waterproof
- Protection of IP 66 at the front and IP 56 at the back
P3 Indoor LED Fixed Video Wall RGB with WiFi/LAN
| P3 Indoor 1/16 Scan 192*96mm LED Module | |||||||||||||
| Specification | Model No.:P3-I16S-SMD2121-64×32 LED Lamp |
||||||||||||
| LED Lamp Specification | |||||||||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | ||||||||
| Red | SMD2121 | 70-100mcd | 120°/120° | 620-625nm | 25℃,20mA | ||||||||
| Green | SMD2121 | 120-200mcd | 120°/120° | 515-530nm | 25℃,10mA | ||||||||
| Blue | SMD2121 | 30-40mcd | 120°/120° | 465-475nm | 25℃,5mA | ||||||||
|
|||||||||||||
| Pixel Pitch | 3mm | ||||||||||||
| Pixel Configuration | SMD2121 | ||||||||||||
| Density | 111,111 pixels/㎡ | ||||||||||||
| Module Resolution | 64pixel(L) * 32pixel(H) | ||||||||||||
| Module Dimension18mm(D) | 192mm(L) * 96mm(H) * | ||||||||||||
| Driving Mode | Constant current, 1/16 duty | ||||||||||||
| Module Mask | Pure black mask–high contrast screen | ||||||||||||
| Electricity Parameter | |||||||||||||
| Optical Ratings | |||||||||||||
| Brightness | ≥1,600 cd/㎡ | ||||||||||||
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) | ||||||||||||
| Best Viewing Distance | ≥3m | ||||||||||||
| Gray Grade | 14 bits | ||||||||||||
| Display Color | 4.4 trillion colors | ||||||||||||
| Brightness | Adjustment 100 grades by software or automatically by sensor | ||||||||||||
| Max. Power Consumption | 18 W | ||||||||||||
| Control System | |||||||||||||
| Frame Frequency | ≥60Hz | ||||||||||||
| Refresh Frequency | ≥1,920Hz | ||||||||||||
| Input Signal Composite Video | S-video, DVI, HDMI, SDI, HD-SDI | ||||||||||||
| Control Distance | 100m(Ethernet cable ); 20KM(optical fiber cable) | ||||||||||||
| Support | VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200 | ||||||||||||
| Color Temperature | 5000—9300 adjustable | ||||||||||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | ||||||||||||
| Reliability | |||||||||||||
| Working Temperature | (-20～+60 ºC) | ||||||||||||
| Storage Temperature | ( -30～+70 ºC) | ||||||||||||
| Working Humidity | 10%～90% RH | ||||||||||||
| Lifetime | 100,000 hours | ||||||||||||
| Mean Time Between Failures ( MTBF) | 5000 hours | ||||||||||||
| Continuous Operating Time | ≥72 hours | ||||||||||||
| Protection Grade | IP31 | ||||||||||||
| Out-of-Control Pixel Rate | ≤0.01% | ||||||||||||
